台灣數位式地震觀測系統之演進


數位系統導入期 (1980~1990)

※ Year ( Red bar 地震小組 → Yellow bar 籌備處 → Green bar 地球所 ).

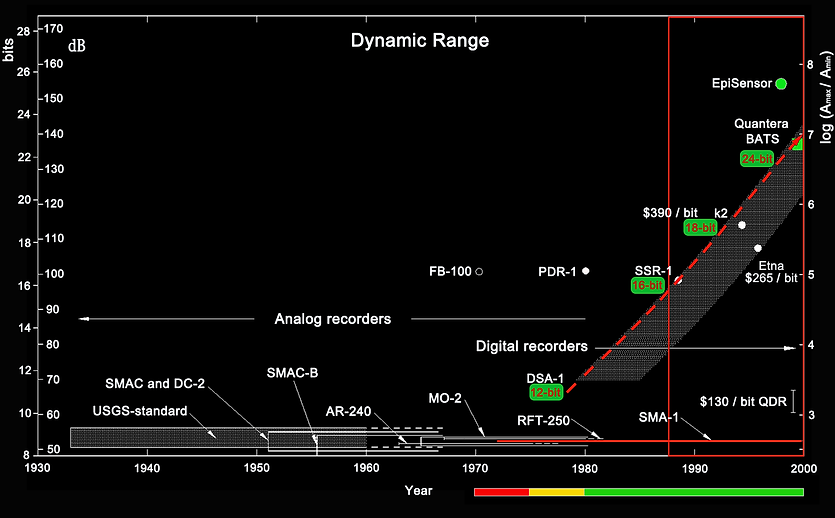

※ Dynamic range （dB）, resolution (bits) and log (Amax/Amin) of selected strong motion accelerographs and digital recorders from 1930 to 2000, and the dynamic range of two transducers (FBA-100 and EpiSensor) (from Trifunac and Todororska).

TTSN 數位式地震資料處理系統（1987~1992）


資料蒐集系統

Micro PDP-11/73

64 Channels ,12-bit A/D

Omega 時間接收器

地震波波相摘讀系統

VAX Station 2000 工作站

地震資料管理系統

Micro VAX-Ⅱ minicomputer

Magnetic tape recorders

Hard Disks

4114 繪圖終端機

繪圖機

數位系統成長期 (1990~2000)

※ Year ( Red bar 地震小組 → Yellow bar 籌備處 → Green bar 地球所 ) .
※ Dynamic range （dB）, resolution (bits) and log (Amax/Amin) of selected strong motion accelerographs and digital recorders from 1930 to 2000, and the dynamic range of two transducers (FBA-100 and EpiSensor) (from Trifunac and Todororska).

CWBSSN 12-bit,

TSMIP 16-bit,BATS 24-bit

※ Year ( Red bar 地震小組 → Yellow bar 籌備處 → Green bar 地球所 ).
※ Dynamic range （dB）, resolution (bits) and log (Amax/Amin) of selected strong motion accelerographs and digital recorders from 1930 to 2000, and the dynamic range of two transducers (FBA-100 and EpiSensor) (from Trifunac and Todororska).
